Duralex fire hose

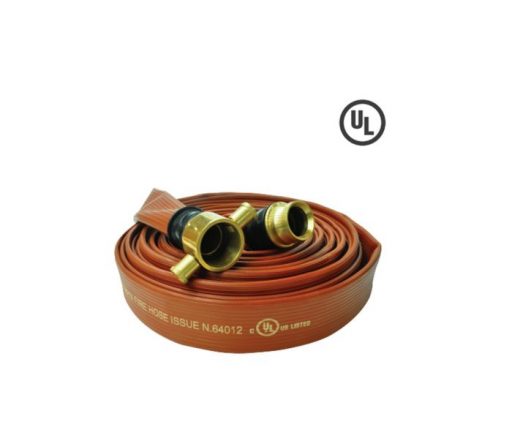

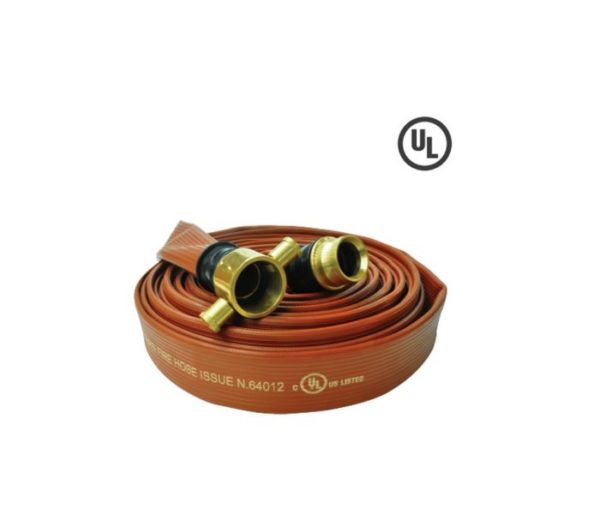

Duralex Fire Hose, UL Listed

• OUTER & INNER LAYERS: Specially formulated rubber,
extruded through the tubular fabric. Minimum load loss
thanks to its smooth liner surface. High-temperature
resistance.
• INTERMEDIATE TEXTILE FABRIC REINFORCEMENT: Jacket
manufactured with tubular weave with high-tenacity
polyester thread. Free of defects such as broken threads,
knots, etc

Features

CHARACTERISTICS
• Excellent resistance to abrasion and to intensive
professional use.
• High resistance to oil, gasoline and a wide range of
chemicals.
• Highly resistant to both contact and radiant heat.
• Lightweight hose, remaining flexible even at low
temperatures (-30°C)
• Easy to handle and wind up thanks to its great flexibility.
• High breaking resistance thanks to its special textile
construction.
• No maintenance or drying required.
APPLICATIONS
FIELDS OF APPLICATION
• Ideal for Fire Departments and Professional Industry
services.
• Refineries.

• Armed Forces.
• Airports.
• Ships and Oil Rigs.
• Heavy Industry.
HOSE DATA
• Hose: Type 3.
• Color: Red.
• Coupling: Instantaneous hose quick coupling
(Aluminum/Brass).
• Standard Length: 30 Meters, other lengths
available upon request

SPECIFICATIONS

SPECIFICATION
Model Number Diameter
In.           mm
Weight
grim
Thickness
mm
Working Pressure ba1 Test Pressure ba 1 Burst Pressure min Standard Compliance/ Approvals
Duralex 38 1Y2″ 38 360 2.30 20 40 60 UL19, NFPA 1961i UL LISTED
Duralex 65 2 Y2″ 64 575 3.60 17 34 51
Duralex 100 4″ 102 1050 3.00 15 30 45
